A M M O N I A
S T O R A G E

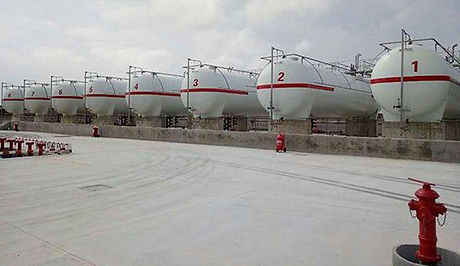

Ammonia storage is used to store ammonia in liquid aqueous phase.
Temperature : -15℃
Pressure : 1200 kPa
Ammonia storage is used to store ammonia in liquid aqueous phase.Temperature: -15℃
Pressure: 1200 kPa
VAPORIZATION UNIT
Vaporizer unit is mainly used to remove water from liquid aqueous ammonia solution by vaporizing all pure ammonia and little of water to gas phase while the much of water left is removed from vaporizer unit in liquid phase so that only little of water and all pure ammonia in gas phase enter to the combustion reactor for combustion reaction.
Temperature: 76℃
Pressure: 800kPa
Combustion chamber is the first reactor of this entire process of which its main reactants are ammonia and oxygen. With the addition of the catalyst Platinum/Rhodium mixture. The product from this reaction consists of Nitric oxide and Water. The conversion of NH3 is 95%. The oxygen is supplied from the air compressor
Temperature: 890℃
Pressure: 800kPa
COMBUSTION UNIT
AIR COMPRESSOR UNIT
Air compressor function is to supply excess oxygen for the reaction in combustion unit, as well as filter out the compounds other than oxygen from making to the stream for the combustion unit, N2 of which then enter the effluent gas stream. The effluent gas stream also come from absorber tail gas product.
Temperature: 245℃
Pressure: 1000kPa
OXIDATION TOWER
Oxidation tower is where a mixture of preheated ammonia and air pass over a gauze catalyst composed of Platinum/Rhodium metals. At high temperatures and with the help of the catalyst.
Secondary air addition and oxidation where the exiting gas mixture from the reactor still contains unreacted ammonia and oxygen. To maximize nitric oxide production, a second stream of air is introduced, and the gas mixture is passed through a separate oxidation chamber.
Temperature: 50℃
Pressure: 800 kPa
Absorption
Column
In absorption column, there are two feed streams, (a gas feed and a liquid feed) which enters the absorption column. There are also comprises two product streams, one is liquid stream the other one is gas stream. In this column, there are two chemical reactions involved with respect to suitable pressure and temperature. The desired product is HNO3.
Temperature : 40℃
Pressure : 1200kPa
